Make any floor plan easy to understand

Buyers often struggle to read a technical floor plan. Planner 5D turns it into furnished 2D and 3D plans, photoreal renders and a 360° walkthrough, so anyone can picture the home at a glance.

Contact us Try the walkthrough

This is a demo. Everything below was made from one real one-bedroom apartment plan.

From plan to possibility

See the space, not just the lines

AI reads the walls, doors, windows and rooms from the original image, so the layout stays the same. Then every room is furnished.

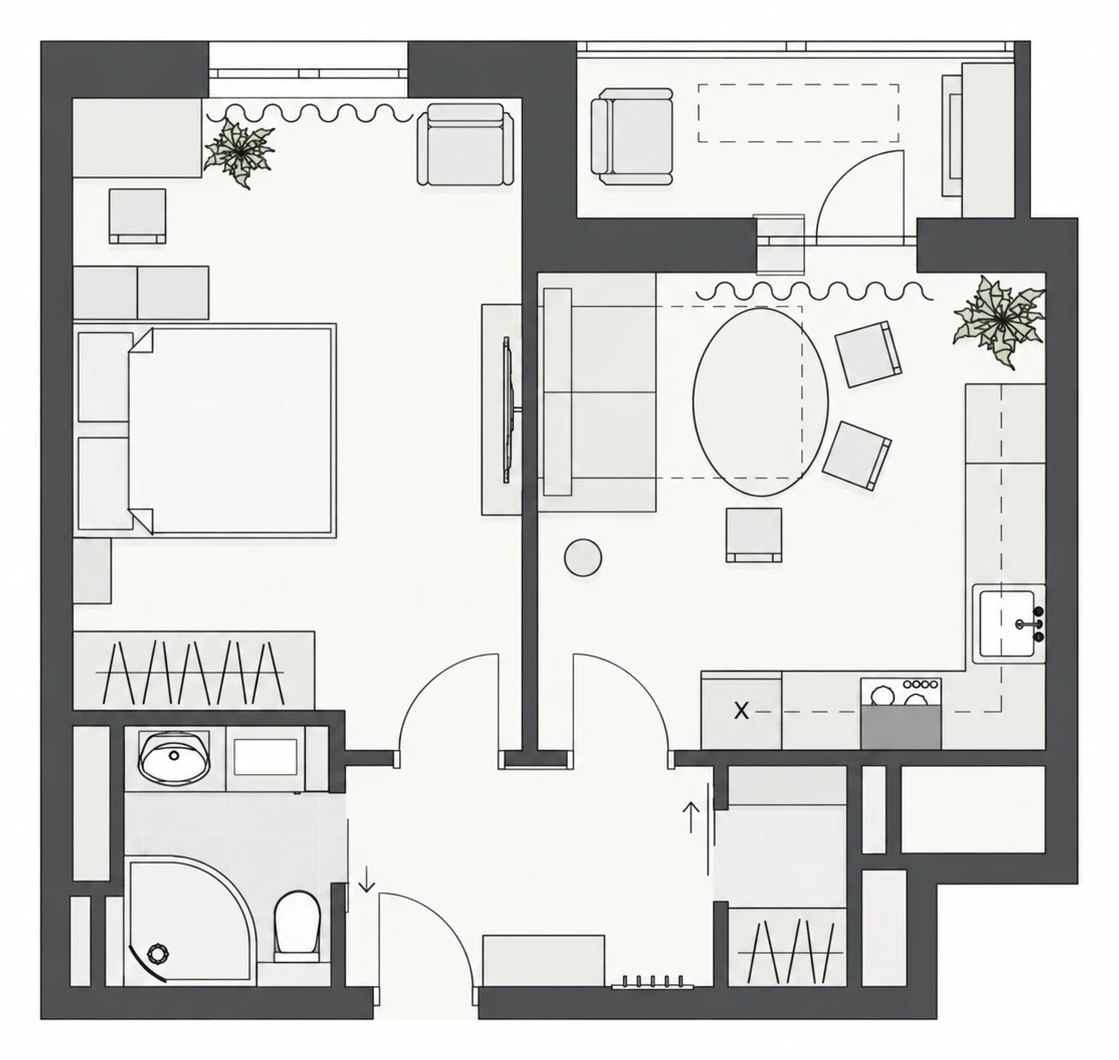

1Original planUploaded image

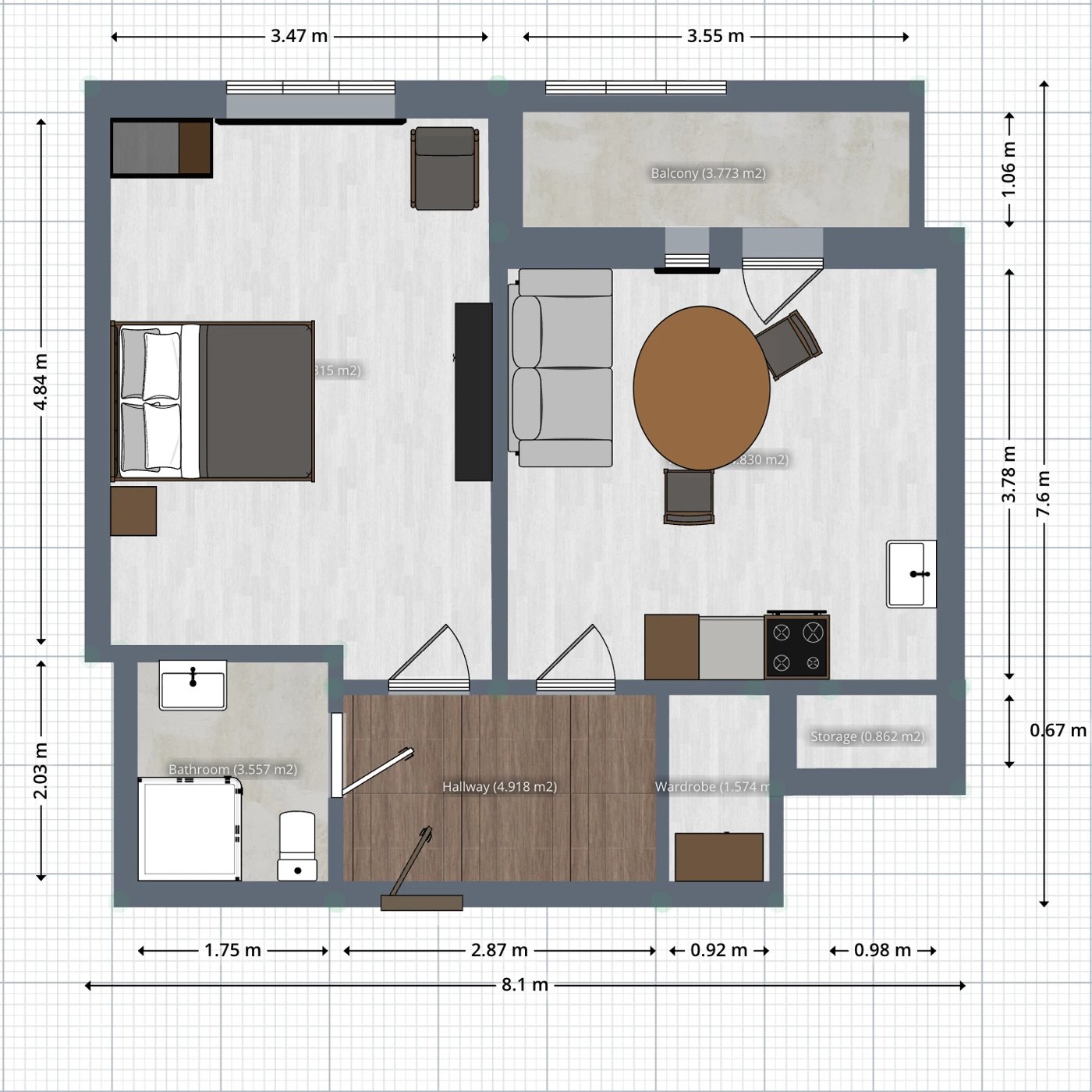

2AI recognitionWalls, doors and rooms
Open project

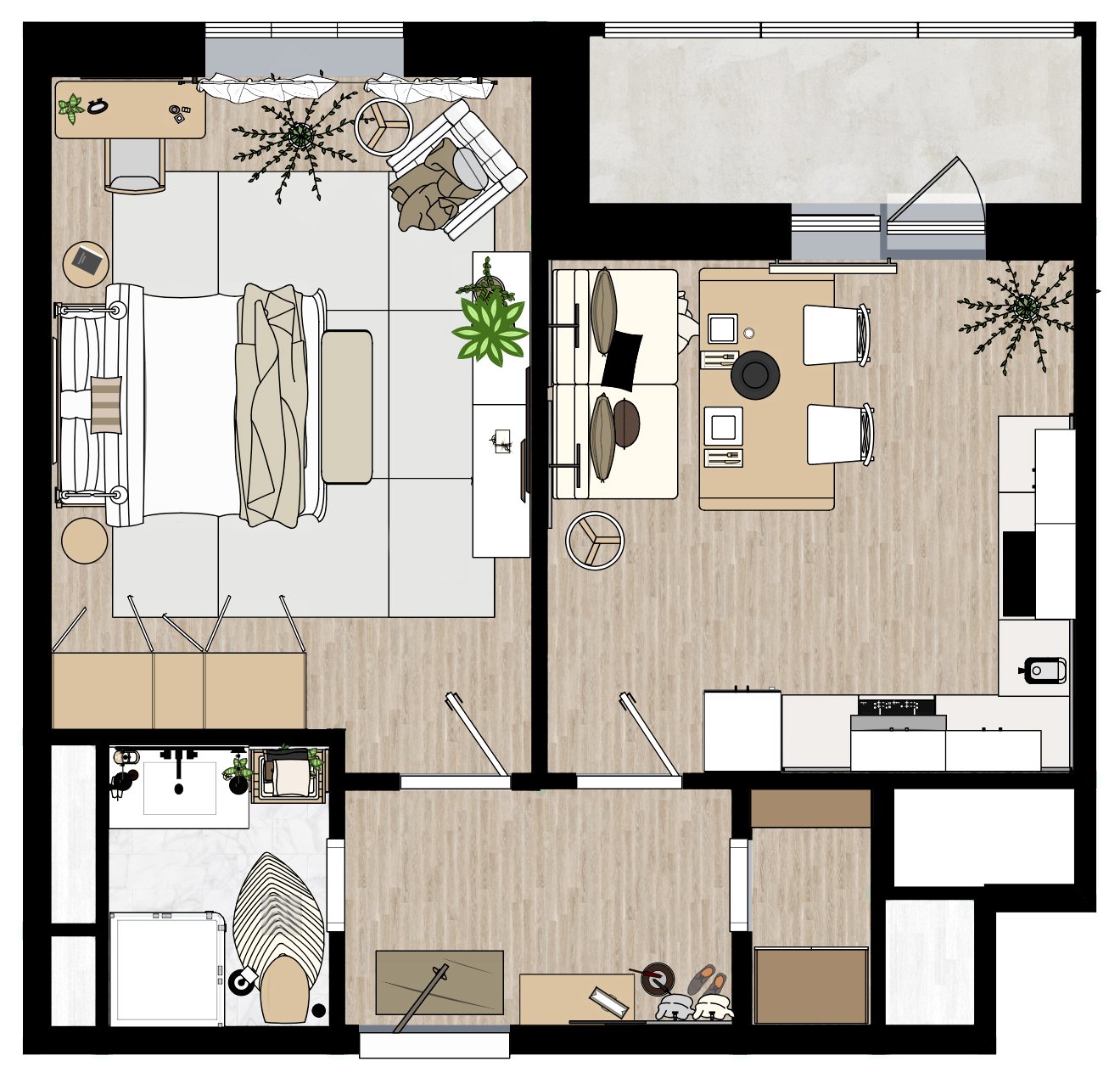

32D floor planFurnished

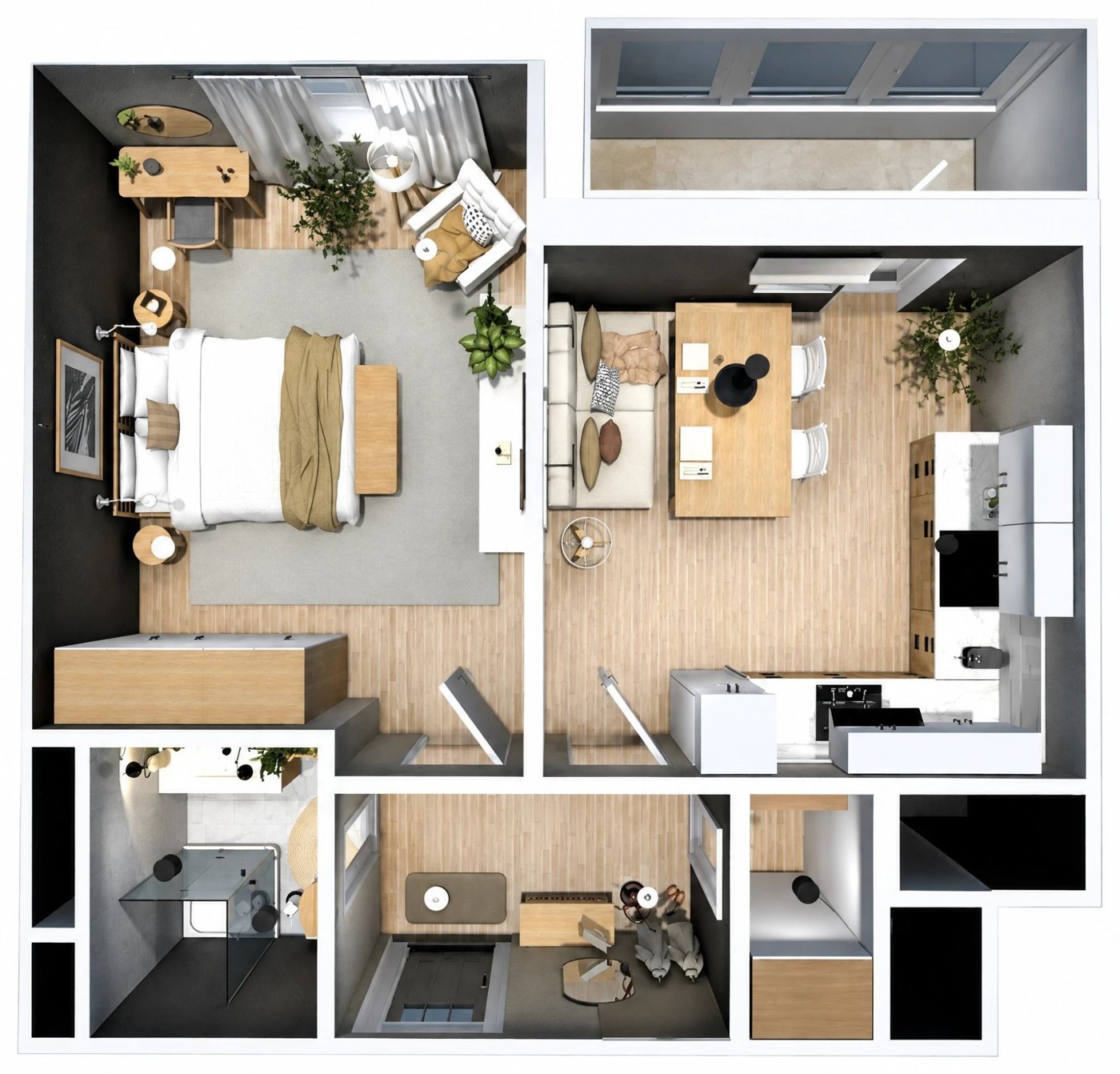

43D floor planTop view

360° walkthrough

Walk through every room

Drag to look around. Use the markers or the floor plan to move between rooms.

You are in

Floor plan

You are hereOther views
Drag to look around. Click a marker or a room on the plan to move.

Editable 2D/3D project

Every plan becomes a Planner 5D project you can edit

You get more than pictures. The whole apartment is a live Planner 5D project, so you can keep working on it after the renders are done.

  • 2D and 3D in one projectPlan and measure in 2D. Check the result in 3D with one click.
  • Walls, doors and windowsMove walls and openings to try a new layout.
  • Furniture and materialsSwap furniture, floors, wall colors and materials from the Planner 5D catalog.
  • New renders and walkthroughsMake fresh 4K renders and 360° views after every change.
Open the project Contact us

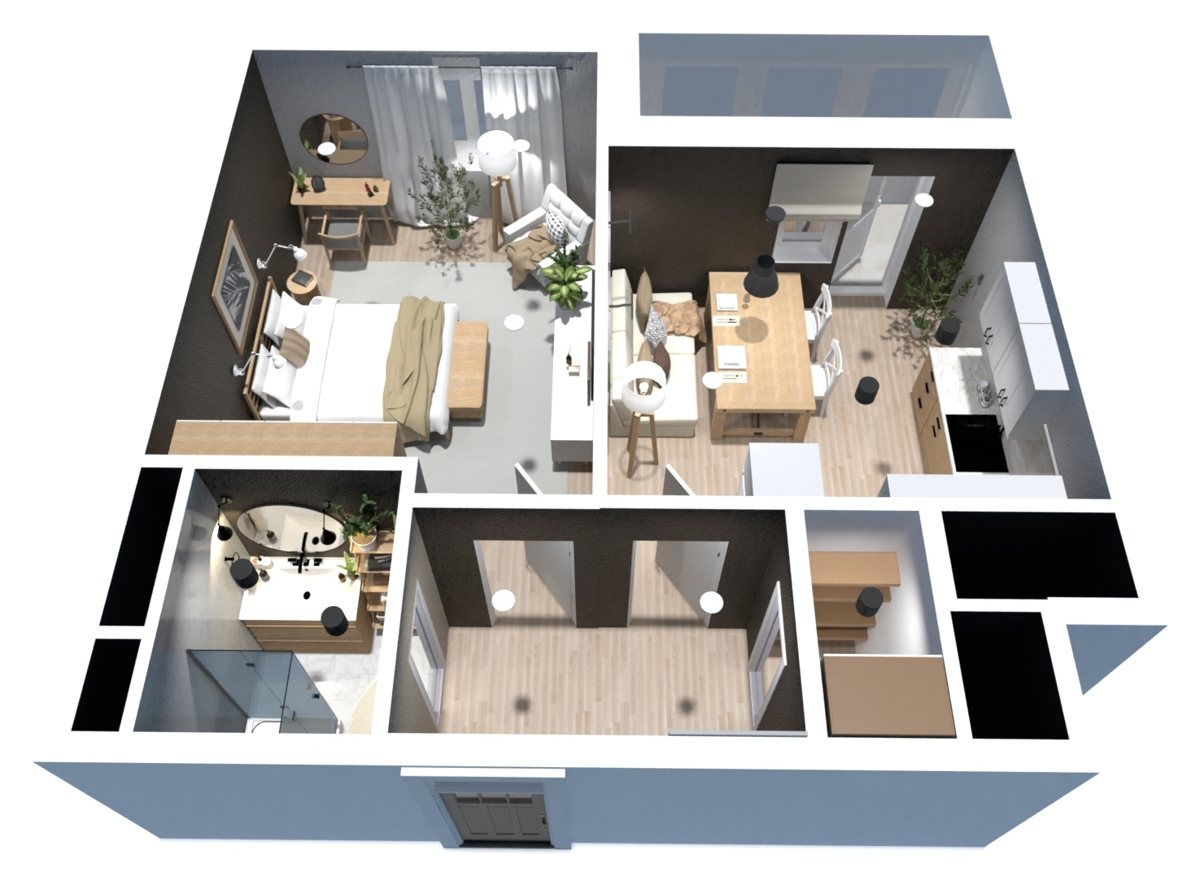

The apartment as a Planner 5D 3D project
Explore in 3D

Opens the live project on planner5d.com

4K enhanced renders

Photoreal views of each room

Renders of the finished apartment, enhanced in Planner 5D AI Studio. Click an image to see it full size.

Original HD renders

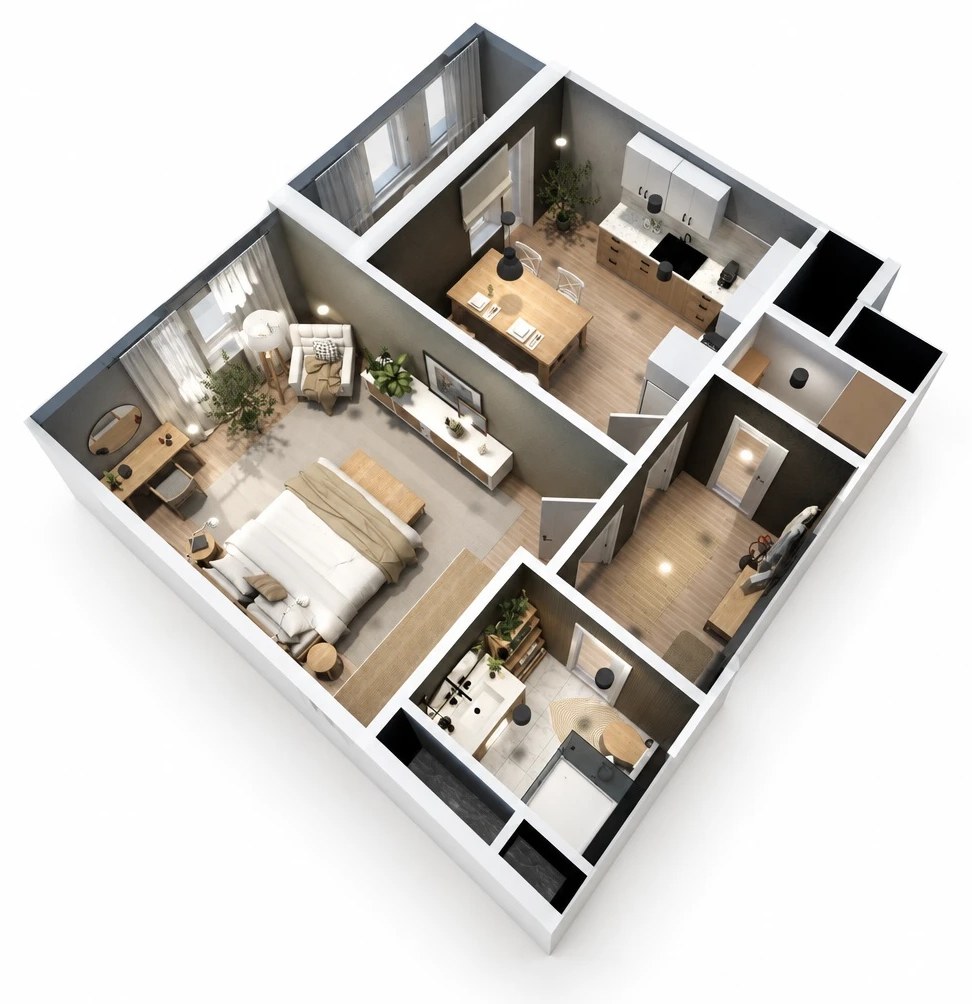

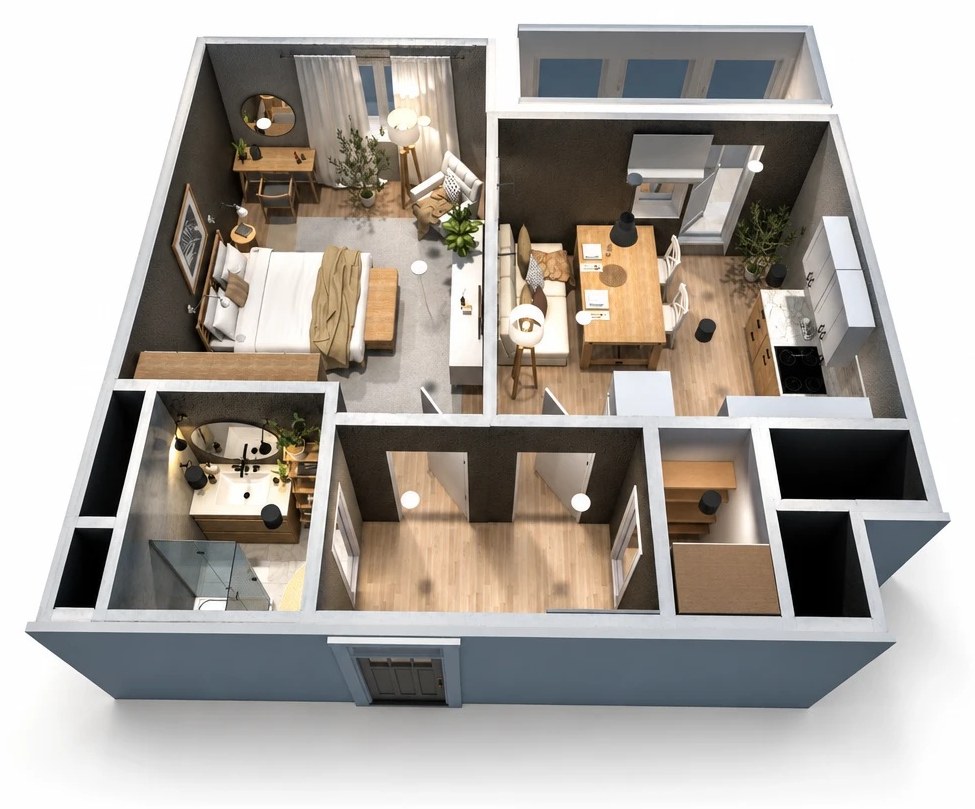

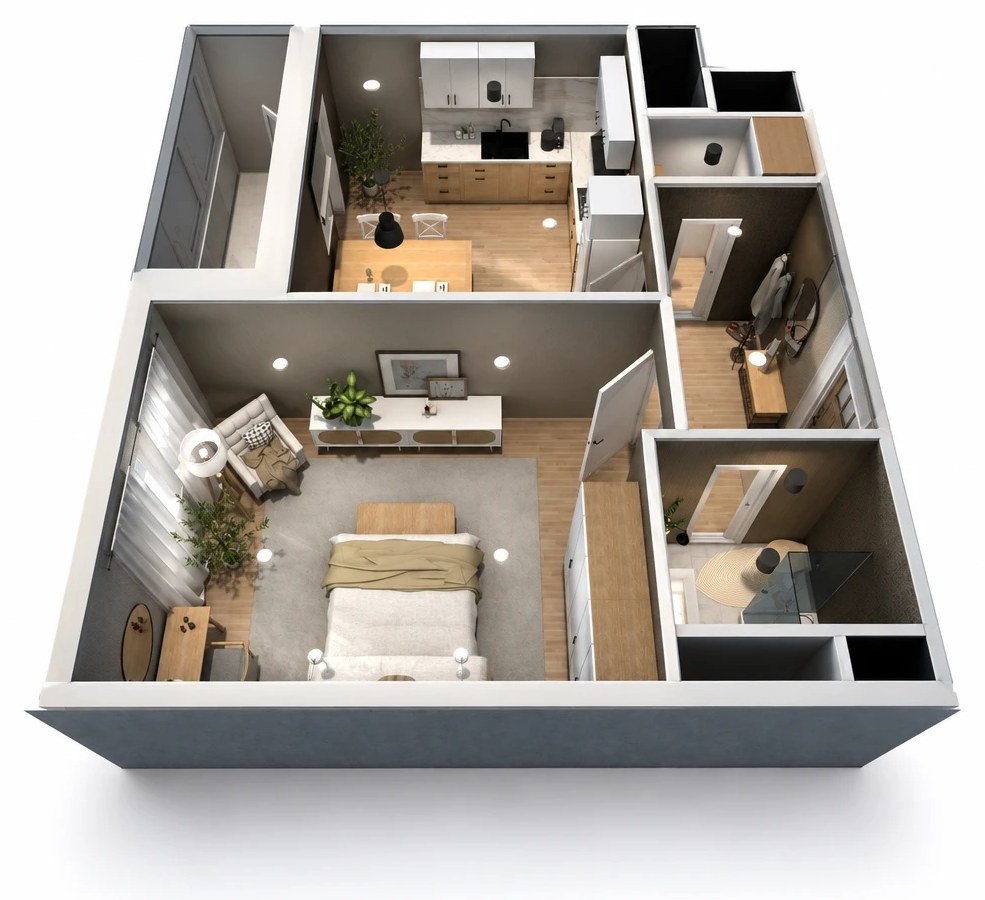

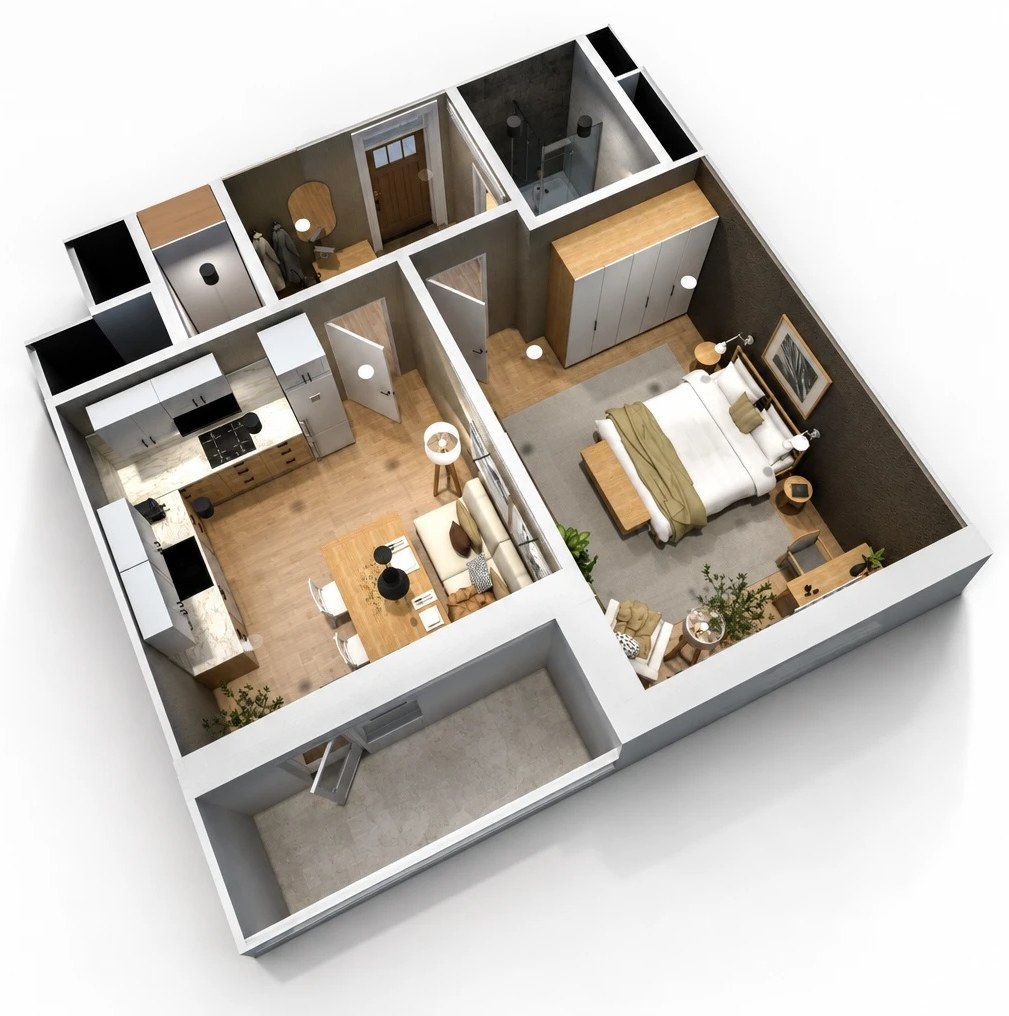

Floor plan visualization

The whole apartment in 3D, from every side

3D floor plan views from different angles show how the rooms fit together. Pick a view, or let them play.

Alternative flow · Planner 5D AI Studio

Need only a picture? Go straight from plan to visualization

Planner 5D AI Studio turns the floor plan image into a furnished, photoreal top view. It is a faster option when you need a visual and not a 3D project.

  • No 3D model neededNothing is modelled or furnished in 3D first.
  • Starts from the plan imageUpload the same floor plan image. The layout stays the same.
  • The result is an imageYou get a ready-to-use picture, not an editable project.

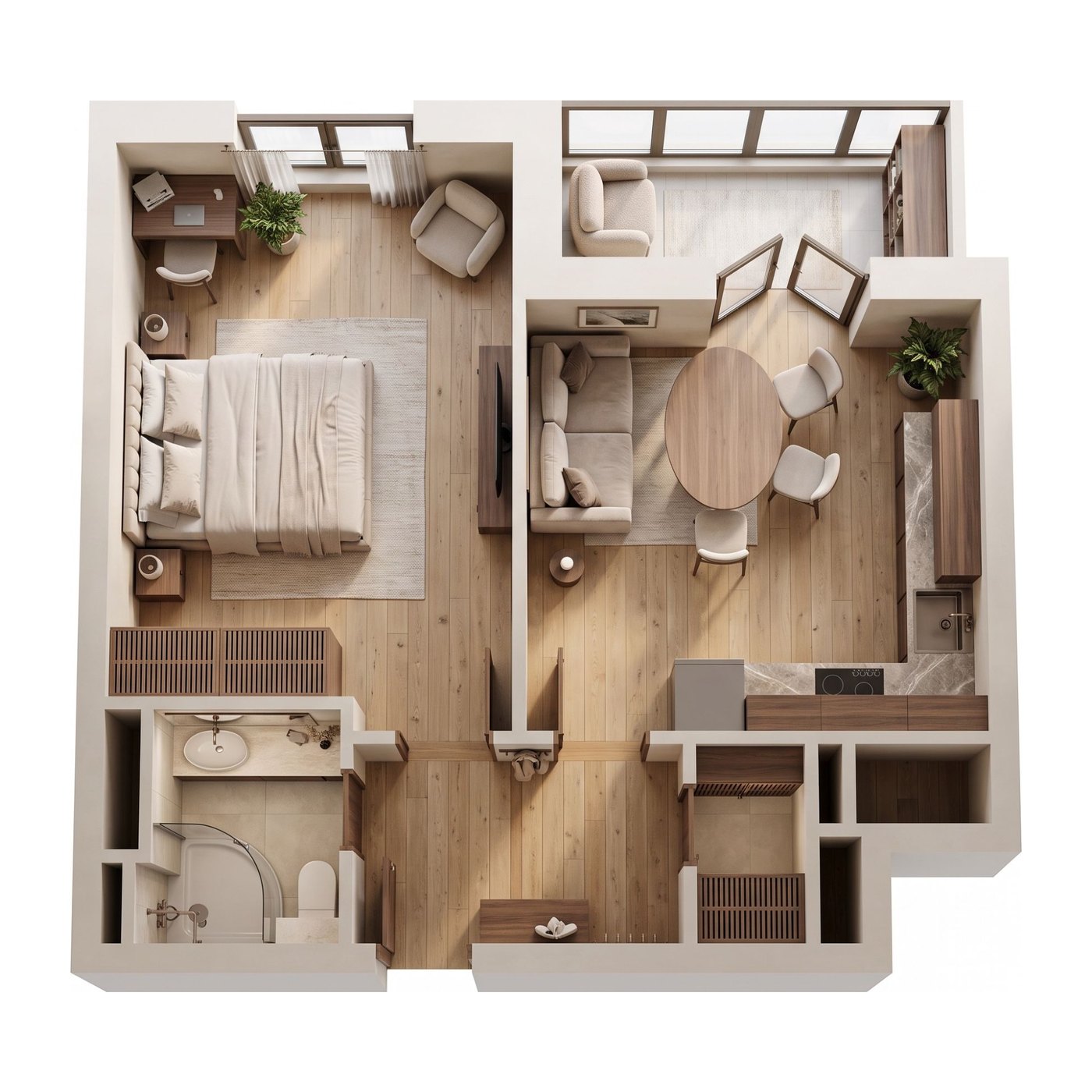

AI Studio result: the same apartment as a furnished, photoreal top view

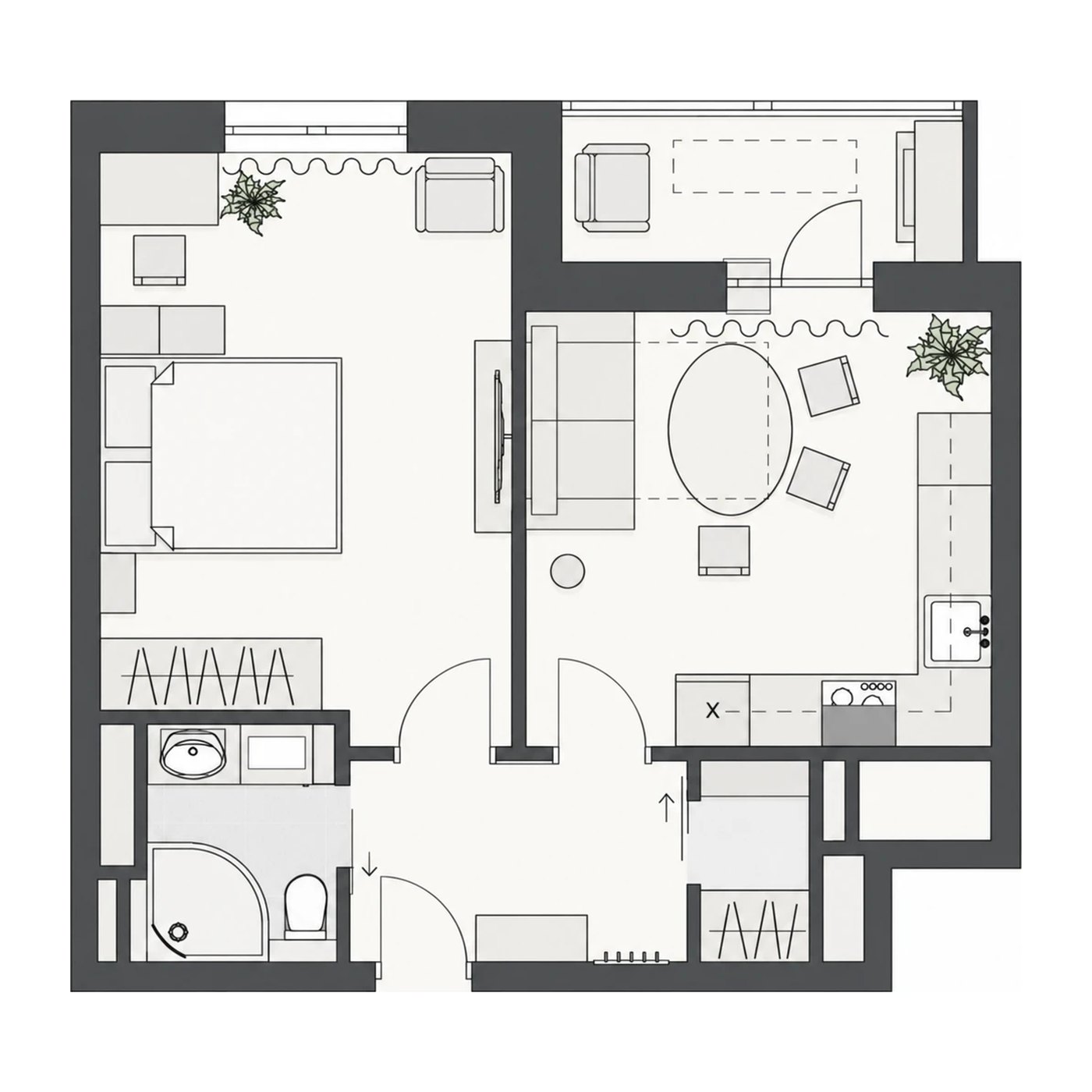

The original floor plan image
Original plan AI Studio result

Get in touch

Want this for your floor plans?

Tell us about your floor plans and we will show you what we can make from them. Every plan can get the same set of results:

  • 2D and 3D floor plans, furnished in the style you choose
  • 4K renders of every room
  • A 360° walkthrough with a floor plan to move between rooms
  • An editable Planner 5D project
